Installing the Cooler Master Hyper 212 RGB Black Edition (& Compatibility FAQ)
Home > PC Assembly > Hyper 212 Installation
How to Mount One of the Most Popular CPU Coolers of All Time On a AMD Motherboard
Published On: November 25, 2020
Installing the Cooler Master Hyper 212 RGB Black CPU cooler is quite a straightforward process, but if you're a beginner perhaps building your first PC or you've just never installed an aftermarket CPU cooler before, the assembly diagrams that come included with the cooler's manual (which you can download here) may not provide you enough information during certain aspects of installation and can even be a little confusing or unclear.
All you get in the manual are some basic little diagrams which may be enough for some people to figure out - especially if you're naturally good at manual labor and assembling things - but the lack of any detailed instructions makes it easy to get a little stuck or frustrated. In this beginner friendly installation guide we'll slowly take your hand through each and every single one of the steps in as basic, layman's terms as possible, along with many accompanying photos to help make the process as frustration-free as possible.
See Also: How to Install a Stock AMD Cooler
Few hardware components have had as good a run over time as the immensely popular Cooler Master Hyper 212, and for good reason as it's an excellent value cooler that effectively keeps CPU temperatures low and reduces noise to a minimum (even when overclocking your CPU). For a CPU cooler, it also looks quite decent. The older Hyper 212 EVO model wasn't the prettiest thing in sight, so when Cooler Master released the slick Hyper 212 Black Edition (and RGB Black Edition - exactly the same cooler except with an RGB fan included) I wondered why they hadn't done so earlier.
So if you're still on the fence about buying one and are here reading this assembly guide as a tire-kicker to see what installation is like, having used this cooler in multiple builds I can personally highly recommended it for any mid to high-end gaming PC. It's also a regular inclusion in our quarterly best gaming PC builds for the money series, and would work well to effectively cool any type of Ryzen 5, 7, and even 9, or an Intel i5, i7, or i9.
It's also not that hard to install, despite what some people may say in customer reviews you see around the 'net - however, if you only rely on the diagrams from the cooler's manual for installation, I can imagine it being difficult for a beginner. But that's why you're here, right? I've written this guide in as simple terms as possible, with clear photos and my own diagrams to hopefully make this a breeze. All you need is a screwdriver, and some patience, and you're good to go. Oh, and a motherboard with an already-installed CPU would be nice too.
You should also have the cooler's manual on hand as you still want to refer to it during installation, even while reading this guide. Alright, let's get straight into the steps using an AMD motherboard as the example; the installation steps for Intel motherboards will be slightly different in a couple areas, but a huge chunk of this guide will still apply. Oh and if you have any feedback on this guide, do let me know in the comments. Good luck and let's go.
See Also: How to Build a PC from Scratch
1. Unbox the Hyper 212 & Gather Pieces
Starting squarely at ground zero, let's unbox the Cooler Master Hyper 212 RGB Black and gather what you need for installation on an AMD motherboard. Here's everything included in the box:
Some of the pieces are only needed for installing the Hyper 212 on an Intel motherboard, some are just for AMD installations, and some are used for both. As mentioned before, in this guide we'll be showing how to install the cooler on an AMD motherboard (specifically socket AM4, which covers most modern AMD CPUs including all Ryzen models). The installation process is similar for Intel, but keep in mind there are differences in the steps. Anyway, in the manual it lists which parts you need for an AMD install:
Image Credit: Cooler Master
Go ahead and gather the listed pieces for AMD (AM4) motherboards which is piece C, D, E, F, H, and M. You'll also need the tub of thermal paste labeled 'K' - note in the picture above it's not listed as needed for AM4 installs since it's a piece needed for both Intel and AMD installations.
If you bought the RGB Black Edition too (not the standard Black Edition or another model) you will also need the pieces 'O', 'P', and 'Q' if you'll be connecting the cooler's RGB fan cable directly to the power supply. We'll explain all this later in detail, but you have the option to connect the RGB cable either to the power supply or directly to the motherboard (and if you do the latter, you won't need those 3 pieces).
So, besides those 3 optional pieces for the RGB cable (set them aside in case you need them later), below is everything you need for now for an AMD install, including a screwdriver and of course your motherboard which I recommend you have sitting on top of its cardboard box:
If you're building an entire PC from scratch and following this guide in conjunction with our full PC assembly guide, you'll know that sitting your motherboard on its cardboard box is a handy way to work on the board as it can protect the underneath of the board and also prevent it from sliding around when working on it.
If you're not building an entire PC from scratch, and are instead just adding the Hyper 212 cooler to an existing PC, you'll need to first remove your motherboard from its case since you need access to the backside of the board in order to install the Hyper 212. Before removing the board from your PC remember to first turn off and unplug your PC at the wall, and ground yourself before reaching into your PC and touching anything (by either wearing an anti-static wrist strap or touching a metal object).
2. Remove Default Mounting Brackets
On a modern AMD motherboard, including the ASRock B550M Steel Legend we're using for this guide, surrounding the CPU socket should be 2 black brackets that are held in place by 4 screws on each corner. These brackets are used to install a stock AMD cooler such as the Wraith Prism/Stealth, and are typically already pre-installed on AMD motherboards.
These brackets are not needed to install the Hyper 212 cooler, so go ahead and unscrew the four screws using your screwdriver. Once the 2 brackets come loose, remove them and store them away somewhere - you never know, you might need them in future to install a stock AMD cooler.
You want to then carefully lift up your motherboard to remove the mounting bracket underneath the board that will have come loose. Pick up the board by holding a firm part of it such as the large heatsink on the top left of the board, the rear metal IO part, or just by its edges.
3. Prepare the Hyper 212 Mounting Bracket
Before actually installing the cooler, you need to prepare the rear mounting bracket that came with the Hyper 212 cooler, which needs to be prepared in a certain way for AMD motherboards (the process is different for Intel motherboards). Once prepared, this bracket will replace the one you just removed from underneath your motherboard. First, grab the 4 square pegs and the 4 clips from earlier.
As shown in the manual, with the bracket facing upwards with the "AMD" sign showing, on each of the 4 corners of the bracket you need to first insert one of the small square pegs (labeled "E") through the hole labeled as "AM4" (if your motherboard uses an AM4 socket as most modern AMD motherboard do including the popular B450, X470, B550, and X570 chipsets).
After first putting in the square peg, you then insert the clip (labeled "M") over the square peg and firmly push the clip all the way in until you hear a clicking noise (which means it's fully locked onto the bracket). You want to then flip the bracket over to check from behind that the small square piece is aligned through the right hole (it's easy for it to slide slightly into the wrong hole).
Once you've repeated the process for each corner your mounting bracket should look like this on either side. Note how in the photo on the right the square pegs are placed in the correct holes as shown in the manual for AMD installations. Make sure your bracket looks the same before continuing.
4. Attach and Secure the Mounting Bracket
Now lift your motherboard carefully again and insert your nicely prepared mounting bracket through the 4 holes surrounding the CPU socket. Then grab the 4 black corner pieces/raisers (labelled 'F' in the manual) and use your hands to twist them into the 4 corners of the CPU socket.
Now grab the socket attachment (labelled 'J' in the manual) and use it to tighten the 4 raisers with your screwdriver.
5. Prepare the Hyper 212 for Installation
Now grab the actual cooler and place it upside down on your table with the sticker facing up. First remove the attached fan by simply unclipping it on the sides. This will allow you to better handle the cooler when it's time to mount it. Also, remove the sticker on the bottom, but avoid touching the surface underneath the sticker as you want to keep this area clean of any debris, oil from your hand, and so on (this is the area of the cooler that will directly come in contact with the CPU and thermal paste).
Grab the 2 attachments labelled 'C' in the manual (not to be confused with the similar-looking 'B' brackets which are for Intel motherboards). Doing one at a time, place the attachment under the side of the cooler so that the small tiny indents are facing inwards towards the middle of the cooler (these indents are circled below). Then, while holding the attachment in place with one hand, use your other hand to screw the attachment in place with your screwdriver using the tiny screws (these small screws are labelled 'H' in the manual).

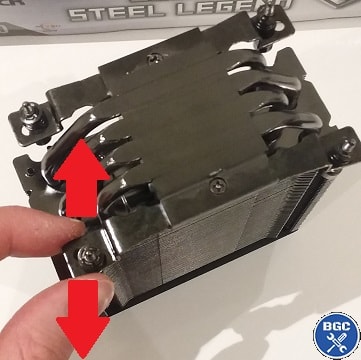

To confirm you've attached these "wings" correctly and securely, after screwing them in on each side of the cooler, try to wiggle them up and down as pictured below - you do NOT want it to be able to wiggle around. If they do wiggle from your touch, unscrew the small screw and re-attach the wing so that it's properly in place. You want these wings to be secure and not be able to move around.
6. Apply Thermal Paste to CPU Socket
Now before mounting the cooler, you need to add some thermal paste (also called thermal compound) to the top of your CPU. Unlike some other coolers such as stock AMD coolers, the Cooler Master Hyper 212 RGB Black Edition, and any other variants of the Hyper 212, does NOT come with thermal paste already pre-applied. Therefore, you must apply the paste yourself. Fear not, Padawan, this is simple.
Go and grab the paste that should have come included with the Hyper 212, and first remove the small lid. Then, while holding the tub of paste with two fingers, gently press down on the rear end of the tub to squeeze out the paste onto the middle of the CPU (NOT onto the cooler). You want to squeeze slowly until you have a small blob roughly the size of a green pea (or a fraction larger).
You don't want to put too much paste, but you also don't want too little, though it's better to have slightly more than you need as opposed to slightly less. Just don't create too big of a blob (again, around the size of a green pea or a fraction larger). Just don't stress too much over the amount of paste, as tests have proved over and over again there's very little difference in performance between different amounts/methods of thermal paste application (to a certain degree; too small of a blob, or too large of a blob can slightly negatively affect performance).
Just keep in mind this wonderful masterstroke that is the "blob in the middle method" (I was a rapper in a past life) is just one way of applying thermal paste. There's other strategies, such as applying diagonal lines in an 'X' pattern for instance, but it's been proven time and time again there's little to no difference between different methods (assuming all things being equal). The pea/blob method is the simplest, and quickest, and what I recommend to anyone. Never had an issue with it and I've used it on many, many builds.
Also, you do NOT need to try and spread the paste out with the cooler (ie shifting it around the CPU) - once you mount the cooler in the next step, the paste will naturally spread out over the CPU from the pressure.
Related:How to Install a CPU
7. Mount the Hyper 212 Onto Motherboard
The moment of truth is here. Physically mounting the cooler isn't hard, but it can be a little annoying as it may take a bit of slight wiggling around of the cooler in order to align and secure it properly. I recommend reading through this entire step first to get an idea of what it is you're going to be doing, and then come back to actually perform the steps.
With one hand, grab the cooler and hover it above the CPU. Align the 4 screws on the bottom of the cooler directly above the 4 corners of the CPU socket. When you have the cooler aligned the correct way, slowly lower it directly onto the 4 corners (and therefore directly onto the CPU and the paste). There is NO need to spread the paste by moving the cooler around; the paste will naturally disperse over the CPU from the pressure of the cooler.
Now what you need to do is hold the cooler firmly in this position using one hand - holding the cooler by the top and pushing it downwards onto the CPU might be easier for you - and at the same time screw in the 4 corners with a screwdriver using your other hand. Getting someone else to screw in the cooler while the other person holds it would make it easier, but you can manage by yourself if you must. As shown in the cooler's manual, make sure to only slightly tighten one corner before moving onto tightening the opposite corner slightly, and then slightly tightening the other 2 remaining corners before then repeating the entire cycle again.
You must do this process (of only slightly tightening one corner before moving onto the next and rinsing and repeating) in order to secure the cooler properly and uniformly/evenly. If you just tighten one corner all the way in before moving onto another corner, it's not going to work as the cooler will tilt to that side. As for how far to tighten each corner, simply tighten until it won't let you go any further. There are springs underneath each corner (indicated in the photo below with the arrows) that prevent you from turning the screws all the way in.
It might take you a little bit of time to properly align and secure all four corners nice and evenly, but don't worry if that's the case. This is normal and it's easy to slightly misalign one of the corners and have the cooler slip a little, meaning that you have to start again and realign the cooler. Plenty of people have got a little frustrated at this stage, but it's not difficult and just takes a little patience. Remember to keep a nice firm grip on the cooler as well as press it down (firmly but gently) onto the CPU while you're trying to screw in the corners.

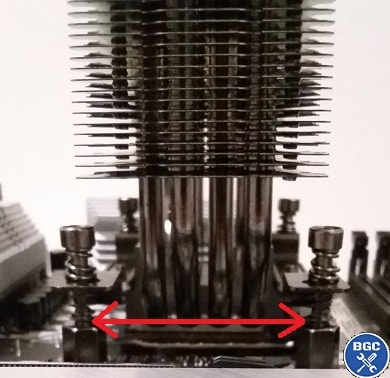

Once you've tightened all 4 corners - to the point where you can't physically tighten any further - check to see that the cooler is evenly aligned on all corners (so that no one corner has accidentally slipped out). I would also pick up the motherboard - by grabbing the cooler - and checking underneath the board to double check that the bracket underneath is also fully secure and not able to be wiggled around.
Should You Reapply Thermal Paste?
Don't worry if the cooler slides around on top of the CPU a little, as it's almost surely going to happen to most people; there's no need to re-apply the thermal paste. Only reason you would need to consider re-applying the paste (which don't forget would mean having to first clean it off properly) is if you completely removed the cooler from the CPU multiple times.
If during this step of installation the cooler slides around a bit - and even if it raises up a couple times from the CPU (as in, looses contact completely), I really wouldn't worry about it. If you get paranoid, you can check your CPU temperature after building your PC anyway (when idle and when gaming), to confirm the cooler and paste is doing its job. As for whether you should
8. Attach Fan & Connect to Motherboard
Now re-attach the fan to the heatsink by simply clipping on each side. You could theoretically attach the fan on either side of the cooler, but you want it on the RAM side of the motherboard (ie facing towards the front of your computer case). This fan acts as an intake fan that will suck in cool air from the front of the case and blow it through the cooler/heatsink fins (and then out the rear).
As you'll see in the cooler's manual, there's no need to attach a second fan to the rear, though you could if you really wanted to (and position it as an exhaust so that air is sucked from the heatsink and blown out the rear). Having 1 vs 2 fans attached on a CPU cooler makes very little difference in terms of cooling performance (at least for most typical gaming PC builds), so it's entirely unnecessary to buy and attach an extra fan.
If you did want a 2nd fan to gain a potential slight boost in cooling performance (again, it's unlikely to make much difference to most people, and I don't recommend it unless you have a good reason), the mounting clips for a 2nd fan is already provided in the Hyper 212 box and the instructions for this are at the end of the manual. If you're wondering, having that second fan can theoretically help as it helps pull heat away from the heatsink at a faster rate.
Anyway, now that you have the fan attached, you need to connect the 2 cables that are attached to it (one is for power, one is for RGB lighting). Firstly, connect the 4 pin power connector to the CPU fan header on the motherboard, which is usually up near the top of the motherboard and should be labelled (physically printed on the board) with a name along the lines of "CPU_FAN". If in doubt, check your motherboard manual.
9. Connect RGB Cable to Motherboard/PSU
Now let's connect that second cable coming from the fan, assuming you are indeed installing the Cooler Master Hyper 212 RGB Black Edition (and not the non-RGB standard Black Edition). You have two options for connecting the Hyper 212 RGB Black Edition's RGB cable.
The first option is plugging the RGB cable directly into the motherboard - if your particular motherboard has a 4-pin RGB header. Most mid to high-end motherboards will have an RGB header (or multiple), but many motherboards won't. Plugging the RGB cable into the motherboard allows you to control the RGB lighting effects via software (ie changing colors or patterns). If you can't locate the RGB header on your motherboard, check your motherboard manual. When connecting the RGB cable, do so slowly and don't force it, making sure you connect it the proper way around.
Also keep in mind something very important: ARGB headers (typically 3pin 5 volt) are different than standard RGB headers (4pin 12 volt), and you should never use an ARGB header for a standard RGB cableotherwise you can cause damage to your components. I repeat; only connect the Hyper 212 RGB Black to a standard RGB header. If your motherboard only has an ARGB header (which may be listed as Addressable RGB and not ARGB; be on your toes), do NOT use that header.
The second option of connecting the cooler's RGB cable is using the provided RGB controller and plugging that into your power supply. The benefit of this is you can use the RGB controller buttons to manually change the RGB effects, as opposed to doing so via your motherboard's RGB software. Note that you have to open up your PC case in order to access the controller to do this though (software control is more convenient).
How to control the Hyper 212 RGB Black Edition's lighting (Image: Cooler Master)
On one end of the controller, connect the tiny double-sided 4-pin attachment (labelled 'O' in the manual), making sure to connect it the proper way around. Then, your cooler's RGB cable plugs into here. On the other side of the controller, insert the big 4-pin Molex connectors (labelled 'Q' in the manual) which then connects directly to a Molex connector on your power supply. If your power supply doesn't have Molex connectors, you can get a Molex to SATA adapter.
Is the Cooler Master Hyper 212 RGB Black Edition Hard to Install?
Generally speaking, the assembly and installation of the Cooler Master Hyper 212 onto an AMD or Intel motherboard is not hard, and actually relatively straightforward. The install process is a little bit more involved compared to installing a stock AMD or Intel cooler, but not by much, and there definitely are more difficult coolers to install than the Hyper 212.
Do You Have to Remove Motherboard to Install the Cooler Master Hyper 212 RGB Black Edition?
If you already have a gaming PC and are upgrading your CPU cooler, you may wonder if you can simply reach inside your case and install the Hyper 212. But unlike some other CPU coolers, which you may be able to simply mount onto the motherboard from above (without needing to remove the motherboard from the case), to install the Hyper 212 you need to access the rear of the board in order to attach a special backplate that comes with the cooler.
Just keep in mind that this applies to AMD motherboards and certain Intel motherboards - with some particular Intel sockets you can install the Hyper 212 without needing to remove the motherboard, as those Intel boards already have a suitable backplate in place behind the motherboard.
Which Cases Are Compatible With the Cooler Master Hyper 212 RGB Black Edition?
The Hyper 212 RGB Black Edition has a height of 158.8mm (6.3 inches), which means it will fit in any computer case that has a 'CPU cooler clearance' spec (may be named slightly different by the case manufacturer) with at least this amount.
For example, if a case lists 150mm as its maximum supported CPU cooler clearance/height, the Hyper 212 RGB Black will not fit since its height is 158.8mm. But if a case lists around 160mm or higher, it will fit. Ideally, you want to make sure there's at least a few mm of space, so a 162-165mm (or higher) case clearance spec would be ideal.
Is the Cooler Master Hyper 212 RGB Black Edition Compatible With Intel and AMD CPUs?
Yes, the Hyper 212 RGB Black Edition is compatible with all modern Intel and AMD CPUs, including all AMD Ryzen CPUs such as the latest Ryzen 5000 series and previous Ryzen 3000 series. The cooler also comes shipped with the mounting brackets and pieces required for installation on either an Intel or AMD motherboard, so there's no need to buy anything else to install it on your particular motherboard.
Which CPU Sockets is the Cooler Master Hyper 212 RGB Black Edition Compatible With?
The Hyper 212 RGB Black Edition is compatible with the following CPU sockets:
What Type of Fan Does the Cooler Master Hyper 212 RGB Black Edition Come With?
The Hyper 212 RGB Black Edition comes with a single SF120R RGB 120mm fan. It can be either connected to the motherboard via an RGB header (for software control of the lighting), or directly to the power supply (for manual control of the lighting using the included RGB controller).

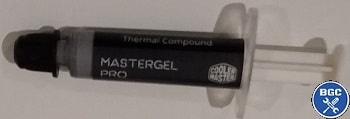

Does the Cooler Master Hyper 212 RGB Black Edition Come With Thermal Paste?
Yes, the Cooler Master Hyper 212 RGB Black Edition comes shipped with Cooler Master branded Mastergel Pro thermal paste in the box. All other variations of the 212, including the standard Black Edition (non RGB) and the older EVO model, also come with thermal paste.
Does the Cooler Master Hyper 212 RGB Black Edition Support Tall RAM Modules?
Depends on the particular module in question, but like many other coolers there is definitely a chance that the fan of the Cooler Master Hyper 212 RGB Black Edition will get in the way of the closest RAM slot on the motherboard (if you have a tall or tall-ish RAM module installed there; if you have only 2 RAM sticks you might not use that furthest RAM slot). However, if you do want to use all 4 RAM slots and your RAM is on the taller side (such as the Corsair Vengeance RGB modules which are taller than average) which gets in the way of the edge of the fan, this problem can be solved by simply moving the cooler's fan upwards slightly as pictured below:
That wraps up this Hyper 212 installation guide; I hope my explanations helped clarify a certain aspect of the process that you perhaps did not get from just reading the manual. If you have any feedback on the guide then let me know in the comments below, and if you want a ton more tips on installing all your other parts then don't miss our comprehensive guide to building a PC from scratch.
The online retailers I recommend for tech.
USA: Amazon US / BestBuy / B&H
Canada: Amazon CA
UK: Amazon UK / Overclockers
Australia: Amazon AU / PLE / Scorptec / MWave
Cybersecurity is becoming an increasingly important issue in the digital age, and installing a VPN is fast becoming a must-have tool these days and is an easy, effective way to improve the security and privacy of your internet connection.
VPNs also help to protect from DDos attacks while gaming online. There are lots of VPNs but NordVPN is the one I use myself and it's always worked flawlessly. You just set it up once and forget it, and it works in the background while gaming or browsing. For more on VPNs see my gaming PC software guide.
I'm an indie game dev currently working on my first commercial release, a story driven VR FPS adventure designed from the ground up for virtual reality and built with Unreal Engine (to be announced once I'm ready here). Also likes researching and writing about tech.
My favorites of all time are OOT, Majora's Mask, Perfect Dark, MGS1, MGS2, GE007, DKC2, THPS3, HL1, HL2, WC3, GTA3, and KOTOR, with the most recent addition to my list of immortals being the VR masterpiece Half Life Alyx. - Julz
Cooler Master Hyper 212 EVO AM4 Install Guide
Due to the socket size and cooler mounting holes change on AMD AM4 motherboards, there will be a limited number of CPU compatible coolers at launch. The Cooler Master Hyper 212 EVO has a compatibility bracket available (AM4 SOCKET MOUNTING KIT Gen1 - SKU 246918) which will be free with purchase of the Cooler Master Hyper 212 EVO. It is also available for existing 212 EVO owners for $4.99 . This current solution only allows the cooler to be mounted in one orientation (up/down) so there potentially could be some clearance issues for DIMMs with tall heat spreaders installed in slot #4 (closest to the CPU Socket). An updated (Gen2) mounting bracket will be available mid-March that will allow up/down or front/back orientation.
To ensure all 4 RAM slots can be populated, customers must install their DIMMs prior to installing their Hyper 212 EVO.
- RAM slot order from left to right: 4-3-2-1.
- Slot farthest from CPU is slot #1.
- If installing 2 DIMMS; Use slots 1 and 3.
Fit the AM4 Mounting Bracket over the cooler base plate (Aluminum)
AM4 Mounting Kit Gen1
In this example we can see with Corsair LPX modules, there is ample clearance but installation would not be possible in slot #4 (far left) with the cooler installed first.
Once thermal paste has been applied (or if using the pre-applied thermal paste) place the cooler evenly onto the CPU. Position the two metal clips over the plastic mounting points and tighten the thumb screws. Make sure to alternate tightening each clip, one turn at a time to ensure even spread of the thermal paste.
Snap the fan onto the cooler and connect the 4 pin PWM connector to the CPU FAN header on the board.
Great Scott! The COOLER MASTER HYPER 212 EVO 2 is new, no wait it’s from the past, but how can it be here now? The COOLER MASTER HYPER 212 series has been a legend for over a decade. With its simple design but great performance. The first Cooler Master 212 was announced way back around 2007’ish and took the air cooler market by storm. Over the years Cooler Master did some tweaks and adjustments, but mostly due to newer technology and motherboard layouts. The one thing that has not changed is the performance of the 212 series air coolers.
Please watch the video at the top of the page for all the testing, installation, and all the other great information.
Pushing the air across the aluminum cooling fins is a Cooler Masters SickleFlow fan. The fan is able to push more air (2.5 Static mmH20) through the coil but with lower noise the original EVO at just 27dBA.
The fan is 120mm and uses two screw-on-to-fan plastics brackets that are leaps and bounds beyond the old bent wire clips for ease of usage.
At just 80mm thick, with the fan, you do not have to worry about memory clearance issues as Cooler Master says that the Hyper 212 EVO 2 is 100% compatible on all motherboards for memory clearance.
Topping out at 155mm in height the Cooler Master Hyper 212 EVO 2 will easily fit in a standard ATX case. If you are looking to install the 212 EVO 2 into a smaller case we suggest that you always measure and check your setup before purchasing any air cooler.
The mounting bracket and heat pipe holder is made of aluminum while the heat pipes are copper and are exposed in the bracket. The heat pipes have been machined down flat and smooth. Do this allows the heat pipes to directly get the heat from the CPU itself, thus removing the heat right away. I believe this is one of the secrets that makes the 212 coolers special.
Something the Hyper 212 EVO 2 has are slots around the heat pipes on every cooling fin. What these slots do is create a small turbulence that forces cool air in and warm air out from around the heat pipes, thus removing heat much more quickly from the heat pipes.
|EXTERIOR COLOR||Silver, Black|
|CPU SOCKET||LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1|
|DIMENSIONS (L X W X H)||120 x 80 x 155 mm / 4.7 x 3.1 x 6.1 inch|
|HEAT SINK MATERIAL||4 Heat Pipes, Direct Contact, Aluminum Fins|
|FAN SPEED||650-1800 RPM (PWM) ± 10%|
|FAN AIRFLOW||62 CFM (Max)|
|FAN NOISE LEVEL||8 – 27 dBA|
|FAN AIR PRESSURE||2.52 mmH2O|
|FAN POWER CONNECTOR||4-Pin (PWM)|
Please watch the video at the top of the page for all the testing, installation, and all the other great information
Check out all the Cooler Master Air Coolers at
Pros: Quietly keeps my i7 nice and cool even under extreme conditions. Addition mounting hardware for a second fan, if desired, or to replace the fan since it is mounted to the bracket with adhesive pads rather than screws.
Cons: Once this cooler is installed and bolted down, you can still easily turn it about 15 degrees in each direction. As your thermal compound hardens, it will be harder to move, but if you do, I have got to believe that will cause the compound to shift or thin out and reduce it's effectiveness. I have the cooler oriented such that the fan blows through the heat sink towards the back of the case. In this configuration, the fan covers one of of my memory slots, so it must be removed to access this slot. It also limits the height of 1 memory module, and modules with a heat sink will not fit under it. Turning the cooler such that the fan blows towards the top of the case causes the heat sink to cover the memory slot, permanently preventing access to that memory slot. The only other option is to flip the fan around and mount it on the other side of the heat sink such that it sucks air through the heat sink and blows it into your rear case exhaust fan. Since the fan came pre-mounted so that it blows through the heat sink, I decided that it would be best to leave it in that configuration and just deal with the interference with my memory slot. Installation leaflet is extremely confusing, and I can see how a first time user of this type of mounting bracket could have a difficult time installing it and end up very frustrated. I wish they used screws, rather than adhesive pads, to mount the fan to the bracket that snaps onto the heat sink.
Overall Review: Overall, a great cooler. Just beware of its large size and how it will interfere with other components.
212 compatibility cooler master hyper
Today's best Cooler Master Hyper 212 EVO V2 deals
The newly updated Hyper 212 looks to tug at the heartstrings of many system builders from over a decade, who may recall countless tech sites spouting consistent praise and community recommendations for the original Hyper 212 product line as a budget air-cooling option. Much like its earlier predecessors, the new Hyper 212 Evo v2 aims for the sweet spot of budget performance potential, with the latest version finding itself amidst a large selection of competitive alternatives.
|Height||6.25" / 158.8mm|
|Depth||2.0" / 50.1mm, (3.25" / 82.6mm w/fan)|
|Base Height||1.38" / 35.1mm|
|Assy. Offset||0.5" / 12.7mm (rear), (0.5" /12/7mm forward w/fan)|
|Cooling Fans||(1) 120 x 25mm|
|Connectors||(1) 4-pin PWM|
|Weight||23.4 oz / 662g|
|Intel Sockets||775, 115x, 1366, 2011x, 2066, 1200|
|AMD Sockets||FM2(+), FM1, AM2(+), AM3(+), AM4|
The Hyper 212 Evo v2 does away with the swing-arm flex mount bracket and makes use of a fixed torsion bar, which greatly simplifies mounting and installation of the cooler. Cooler Master provides hardware to support most Intel and AMD CPU sockets, although Threadripper is not among them. A set of additional fan mounting hardware is included for users seeking to add an additional fan to the Hyper 212 Evo v2 for push/pull airflow, a PWM splitter for dual fan operation and a syringe of thermal compound round out the boxed accessories.
Cooler Master covers the Hyper 212 Evo v2 with a 2 year product warranty.
Cooler Master provides an updated SickleFlow 120 fan rated to 1800 RPM for use on the new 212 Evo v2, which ships with mounting clips pre-installed. The face of the fan hub is adorned with a holographic logo.,However, the cooling fan does not offer RGB/aRGB lighting as Cooler Master appears to be sticking with the original Hyper 212 theme of budget-minded minimalism.
The cooling fin stack looks very similar to the Hyper 212 models of years past, but with some improvements. A milled aluminum mounting block is fixed to the heatpipes of the Evo v2 and provides much needed relief from the struggles of installing the original 212’s with the adjustable swing arm mount. The cross-section of the cooling tower reveals offset heatpipes and an ‘open’ fin stack which allows airflow to escape at any angle.
The milled aluminum base has an aggressive saw-tooth milling that allows it to function not only as a mounting plate, but also to aid as additional thermal dissipation. The tension mounting screws are maintained with washer clamps, further adding to the improved mounting system.
A set of four copper heatpipes provides the cooling power for the Hyper 212 EVO v2, which are integrated with the aluminum mounting plate and milled flush for CPU IHS direct-contact. The underside of the mounting block shows the securing clips for the tension mounting screws as well as the heatpipe integration into the cooling fin stack.
The milled base of the Hyper 212 EVO v2 is visibly perfect using a steel straightedge for comparison. We see no evidence of convexity or concavity.
The base of the cooler mated well with the face of our Intel Core i9-10850K CPU IHS and provided a quality thermal compound spread, showing consistent contact across the entirety of the processor with all four heatpipes directly interfaced.
The updated mounting hardware for the new Cooler Master Hyper 212 Evo v2 allows for a simpler installation than some of the older 212 models. The fixed mounting plate provides good stability to provide almost automatic alignment of the tension screws and the mounting brackets without rocking or twisting.
The last step of installation is to add the SickleFlow 120 fan by snapping the retention brackets around the cooling tower and finding the appropriate 4-pin PWM header for fan management. With taller memory DIMMs like our Corsair Dominator Platinum modules, we can easily see how fan clearance can be an issue for systems using memory and tall heat spreaders, so take this into account.
While the fan mount itself is adjustable, moving the 120mm fan also raises the airflow up and over the top of the cooler, lowering the efficiency of the cooler itself. Less airflow through the cooling fins means a lowered thermal load potential.
