Johnson outboard temp gauge kit

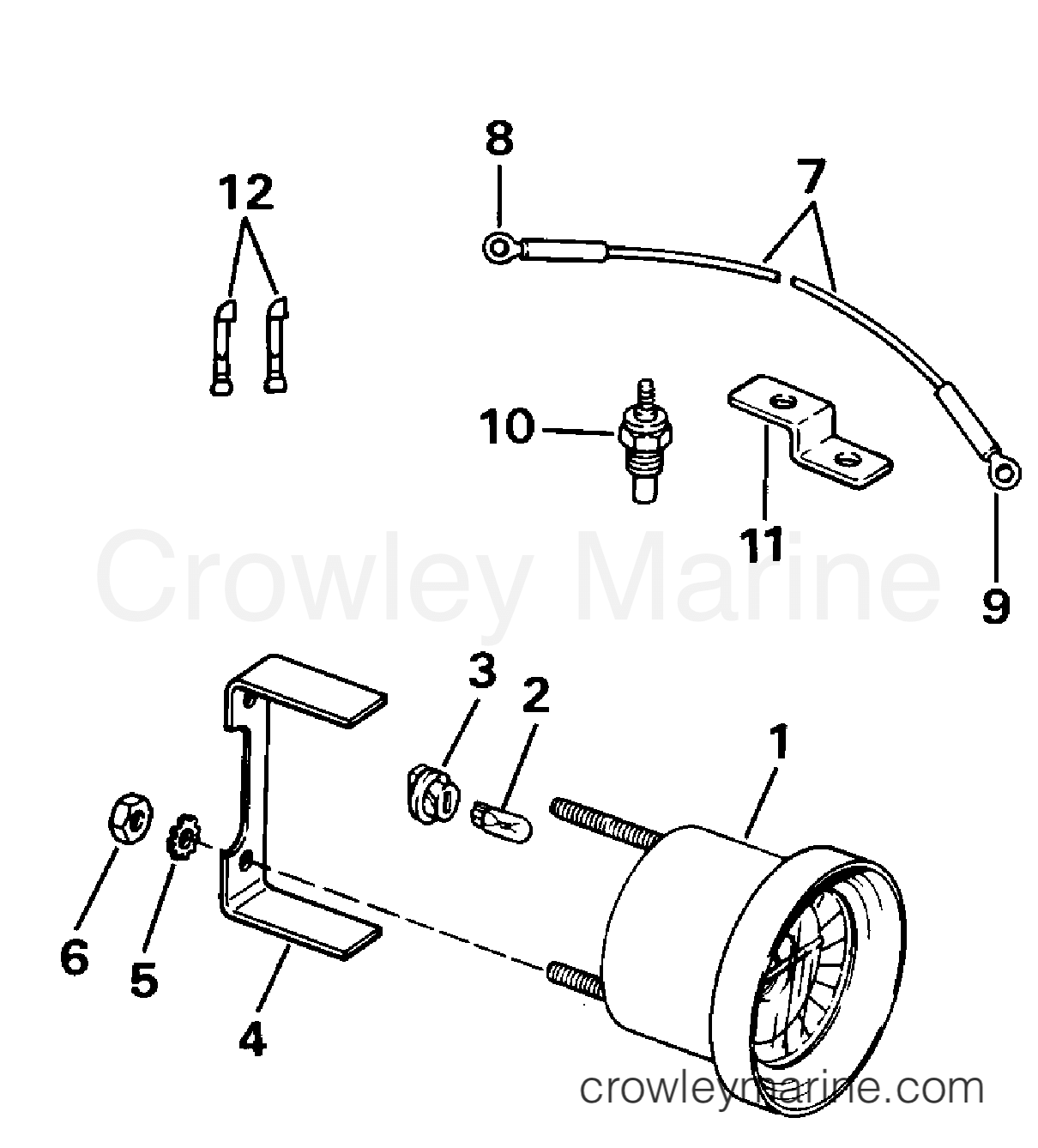

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. Print this page

1995 Rigging Parts Accessories - Instruments - OUTBOARD WATER TEMPERATURE GAUGE KITS1995 Rigging Parts Accessories - Instruments - OUTBOARD WATER TEMPERATURE GAUGE KITS
Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view it's current status

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

0767209 -  L/P 75.800175409 - T.WTR TEMP O/B0175411 - OBSOLETE BRP PART0175412 - WATER TEMP GAUGE0764079 - Water Temperature Gauge Kit (Concept Series)0175549 - OBSOLETE BRP PART0764050 - TEMP GA KIT-OB0175855 - OBSOLETE BRP PART0122552 - All Except Tech Series Zephyr Series Bulb0125432 - Instrument Bulb0122553 - Bulb Socket0126272 - Mounting Bracket0125411 - Lock Washer-0125410 - Nut0174676 - Lead Assembly 0204036 - Terminal0510904 - Terminal0174675 - Sending Unit Assembly0122787 - Mounting Bracket0308808 - Knife Disconnect

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Sours: https://www.crowleymarine.com/johnson-evinrude/parts/38911.cfm
 Print Thread
temperature sender advice for2003 90hp omc outboard
consciencebay
Posted on 06/12/11 - 5:15 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

hi guys, i have a 2003 v4 2 stroke 90hp Johnson on my beloved 1986 whaler 17ft super sport.......i just redid my interior and would like to install a temperature gauge (its an omc gauge that i purchased at a garage sale circa 2002) and matches my other gauges perfectly...... when i pull off the engine cover i see two blank holes in each cylinder head...i assume they are for a temp sender...the block is not painted at these spots...i measured the hole at roughly 3/8 inch wide.....could anyone help me with what model sender to purchase.....help greatly appreciated [ i ordered one form go2marine but it was wayyy too big...it said thread size 3/8 in ch npt, but the sender seemed to have girth of at least 5/8 of an inch ....help!


Edited by consciencebay on 06/12/11 - 5:16 PM Joe Kriz
Posted on 06/12/11 - 5:18 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

I would look those parts up at the "BRP Parts Catalog" site.
We have that link in our "Vendors Web Links" section on the left sidebar.
http://epc.brp.com/SiteMods/BRP_Publi...amp;lang=E


Joe Kriz -
1977 Montauk 17' consciencebay
Posted on 06/12/11 - 5:23 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

joe once again ....helping me huge...by the way, my morse MT-3 install went fantastic..look great


Edited by consciencebay on 06/12/11 - 5:24 PM consciencebay
Posted on 06/12/11 - 5:28 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

checked out the brp catalogue....they dont have a temp sender......but each cyl head (pot and stbd) has a 'temp switch' i recognize these from seeing my engine head today....but i dot think this is what i want....dont i want something that fills one of the two blank holes?

 Joe Kriz
Posted on 06/12/11 - 5:31 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

Yes.
I think you want a Temperature Sending Unit that would screw into the head.

We are talking about Water temperature and not Water pressure, correct?

I had a Temperature gauge on my 1999 Johnson 175... The temperature sending unit screwed into the head and the wire went to the gauge on the console. Worked great.

EDIT:
I found it under Accessories.....
Water Temperature Gauge
Sending Unit Assembly #0174675

I also found the Tech Series gauge for the Water Temp Gauge kit. That was figure number 1......
What style of OMC/BRP gauge do you have? The Tech Series?

Disclaimer:
I would definitely check with your local Evinrude dealer as I am not a BRP parts man nor am I affiliated with OMC/BRP in any way shape or form...
The information above is what I found in the BRP Online Parts Catalog and just passing it on to you....


Edited by Joe Kriz on 06/12/11 - 5:41 PM
Joe Kriz -
1977 Montauk 17' consciencebay
Posted on 06/12/11 - 5:33 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

yes thats what i want its not in the manual tho.....prob because it doesnt come standard....no idea what model sending unit to order..... the hole looks to be 3/8 wide.....any thoughts joe?

 consciencebay
Posted on 06/12/11 - 5:53 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

wud you mind sending me the link? still cant find it under accessories in te BRP.....thsanks!

 consciencebay
Posted on 06/12/11 - 5:57 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

found it! thanks joe!

 Joe Kriz
Posted on 06/12/11 - 5:57 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

The links don't work like that on their site...

1. Select One = OB Accessories
2. 2001-2004
3. Instruments
4. Outboard Water Temperature Gauge Kits
5. There you would look at #10 and that is the Water Temperature Sending Unit Assembly with the part number I gave you above.

PS....
You didn't answer my question on which BRP style gauge you have.


Edited by Joe Kriz on 06/12/11 - 5:59 PM
Joe Kriz -
1977 Montauk 17' Derwd24
Posted on 06/12/11 - 6:03 PM
User Avatar
Member

Posts: 1607
Comments: 9
Joined: 05/09/07

You can also take a look at this link below, sounds like it may be the same diagram Joe referenced. If you also order the sending unit mounting bracket, you'll be able to use the sending unit regardless. The bracket mounts by removing one of the water jacket bolts and when its mounted, the sending unit threads into it and presses up against the head to get the correct temp.

http://www.gcfmarine.com/partList/0/4...0~C0224177


Dave - 1983 Outrage 22 Joe Kriz
Posted on 06/12/11 - 6:06 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

Dave,

Good one.
Yes, that is the same drawing that they took off the BRP site.
I am assuming that you get everything in the kit except the gauge if you order #10... At least that it what it looks like on the BRP site. The part numbers are the same but it is for the Tech Series gauge.
That is why I asked what gauge series he has...

29.30 for the Sending Unit Assembly for Tech Series gauge (and Acculine series)

I have never know anyone to have the Acculine series as they didn't make those series very long.
See this article on OMC/BRP gauges. Look at the Acculine and the Tech series gauges.
http://www.whalercentral.com/articles...icle_id=43

I used to have the Traditional series but many things are no longer compatible with that series as it has been discontinued.
Here are my new Tech Series Gauges.
http://www.whalercentral.com/images/a...nts_t1.jpg

Always best to talk to a dealer when ordering to make sure........


Edited by Joe Kriz on 06/12/11 - 6:31 PM
Joe Kriz -
1977 Montauk 17' consciencebay
Posted on 06/12/11 - 7:22 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

thanks guys....yes joe i have the tech one i believe...i just ordered part #10 .....thanks so much for the help guys...i really do appreciate it ....i will let you know how it goes....


 whalerman
Posted on 06/13/11 - 6:48 AM
Member

Posts: 540
Comments: 5
Joined: 06/26/07

I had one of those on my '83 115 johnson and worked great. Yes, the sender rests on the head to get a reading and what I did was to mark the area that the sender was in and removed the paint there so that it would work better, thought the paint would insulate the head is why I removed the paint in a round shape to match the sender.


THOM : 1999 Outrage 18, 2012 E-TEC 150, 2012 EZ Loader trailer Joe Kriz
Posted on 06/13/11 - 1:20 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

Thom,

Are you referring to a "Cylinder Head" temperature gauge?

Water Temperature is different as far as I have seen.
You can't get water temperature unless you are in contact with the water.

Good point.
We should have consciencebay show us a photo of his gauge so we know for sure what he has.


Joe Kriz -
1977 Montauk 17' whalerman
Posted on 06/13/11 - 2:13 PM
Member

Posts: 540
Comments: 5
Joined: 06/26/07

Hi Joe, well I guess thats what it would tell, as I don't think, if memory serves, that the water side is accessable. I also was looking at the referance post that Dave had and that is the kit that I had.


THOM : 1999 Outrage 18, 2012 E-TEC 150, 2012 EZ Loader trailer Joe Kriz
Posted on 06/13/11 - 2:31 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

I don't remember what the sending unit looked like on the 1999 Johnson 175 as I didn't put it in...

I have never seen the gauge that I had either. Just can't find it.
I have found other OMC Water Temp gauges and kits like the one they show. 0175410 is the complete kit with gauge.

I am assuming that the gauge alone is #174682 but not positive as the one I found was called a Head Temp...
See attached photo.
My gauge did not look like that even though I thought it had this same part number.
Mine had the temp in numbers and was Tech Series.

Here is a complete kit I found new for $20. This includes the sending unit, wire, clips, etc....
You can scroll through the photos of all the parts b clicking on "View More Images"...
http://www.oempartsllc.com/gaugeomche...elnew.aspx
Again, this is not the gauge I had...

I have been searching for good photos of the different gauges but haven't found anything worth posting yet.

Does anyone have a good photo of the Temperature gauge that shows degrees of temperature in Fº ????
I have a small photo but not good enough to show the details.
I am trying to find the part number of this gauge. (it may be the same as above but with Fº degrees instead of the Green Arc.....


Joe Kriz attached the following image:


[35.96Kb]
Edited by Joe Kriz on 06/13/11 - 4:18 PM
Joe Kriz -
1977 Montauk 17' Joe Kriz
Posted on 06/13/11 - 4:53 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

Ok, I found a photo of a Classic Series (not the newer Tech Series) gauge.
This one shows both ºF and ºC

Mine was like this but in the Tech Series that has both a red circle and a white circle around the outside of the inner dial.

The gauge shown below will not work with the newer sending unit according to the BRP website.


Joe Kriz attached the following image:


[24.27Kb]
Edited by Joe Kriz on 06/20/11 - 4:59 PM
Joe Kriz -
1977 Montauk 17' consciencebay
Posted on 06/14/11 - 4:44 PM
Member
Personal Page

Posts: 32
Comments: 0
Joined: 06/02/11

i think i have this one :
http://charlotte.craigslist.org/boa/2373586762.html

 Joe Kriz
Posted on 06/14/11 - 4:54 PM
User Avatar
Site Owner
Personal Page
Photo Albums
Project Albums

Posts: 11306
Comments: 452
Joined: 03/18/05

Yep... That is the Tech Series.
That is the one I had.
The kit number shows 0175410 but I am not sure what the number on the gauge is...

I saw that but didn't want to post it in case someone was already looking at buying that one.

Can you look on the gauge and tell us the Part Number?




Joe Kriz -
1977 Montauk 17' whalerman
Posted on 06/14/11 - 5:16 PM
Member

Posts: 540
Comments: 5
Joined: 06/26/07

I had the tech series as well but, don't have all the info. anymore as it was a long time ago.


THOM : 1999 Outrage 18, 2012 E-TEC 150, 2012 EZ Loader trailer
Sours: http://www.whalercentral.com/forum/viewthread.php?thread_id=12590&rowstart=0
  1. Amazon solutions architect intern
  2. Metal bottle pump
  3. Escape room bartlett
Sierra Marine Eclipse 2" Water Temp Gauge Kit Outboard. Part number 68402P.

Features
  • Scratch-resistant domed glass lens
  • Perimeter lighting for excellent readability at night
  • U.S. and metric scales with ISO symbols
  • Optional add-on eyebrow or square bezels available (see Gauge Accessories for details)
  • Dial Range: 100-220 degree F
  • Gauge Description: Outboard Water Temp Kit (Cold-Hot)
  • Size: 2"
  • Sender Code: Includes ''J''

About Sierra
Sierra provides premium-quality aftermarket replacements for over 6,000 marine parts, tools, and components. Sierra products are engineered to meet or exceed OEM standards, and stand up in harsh marine environments. Every new Sierra part comes with a limited lifetime warranty that covers the useful life of the product against any defects in workmanship and materials.

Details

BrandSierra
Item Weight0.8 lbs
Made InUnited States
ManufacturerSierra
Manufacturer #68402P
Part Number68402P
Shipping Dims8" x 6" x 5"
Shipping Weight1 lbs
Size2"
TypeEclipse 2" Water Temp Gauge Kit
UPC808282267100
WarrantyLimited Lifetime
